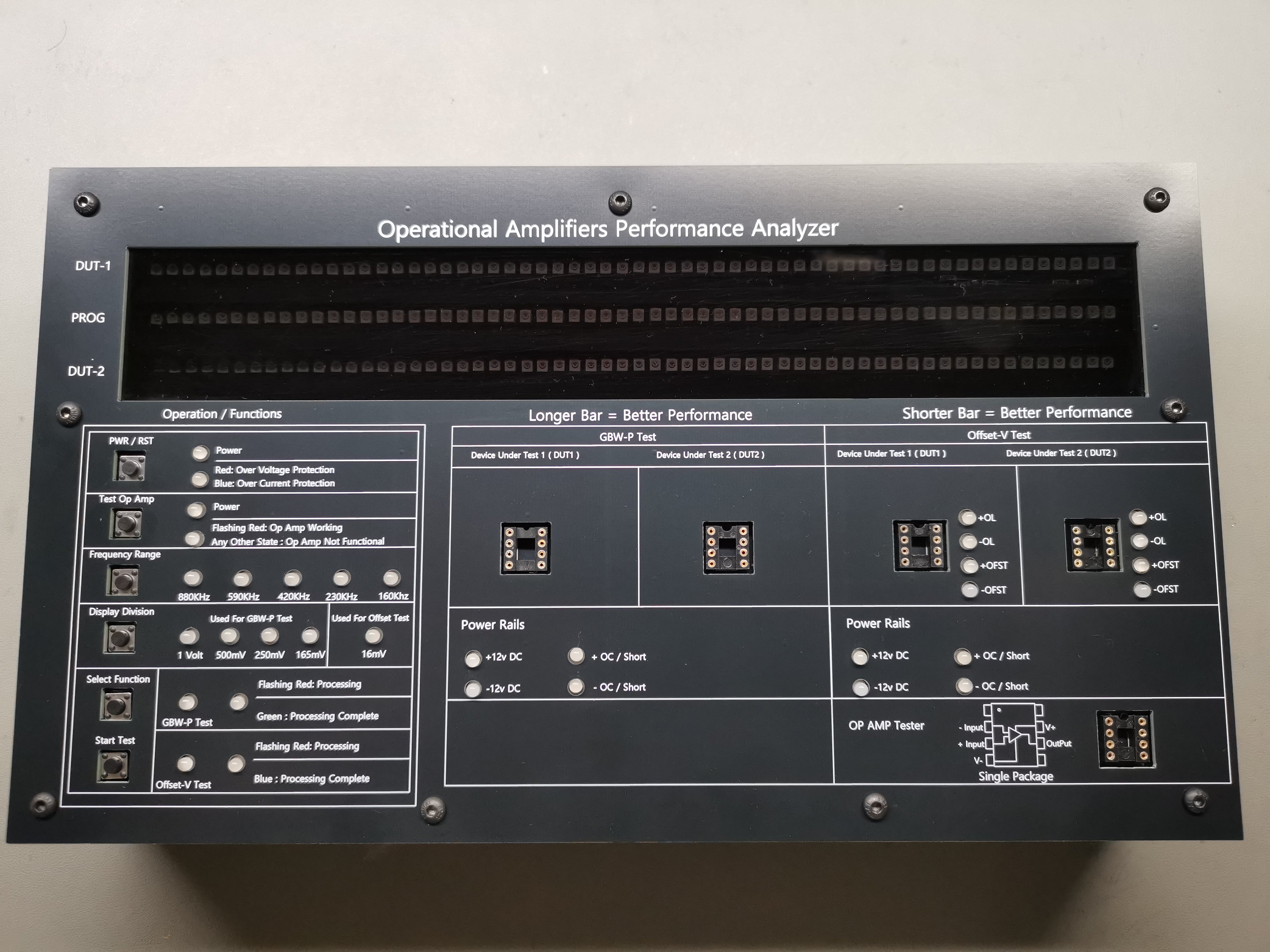

Operational Amplifiers Performance Analyzer

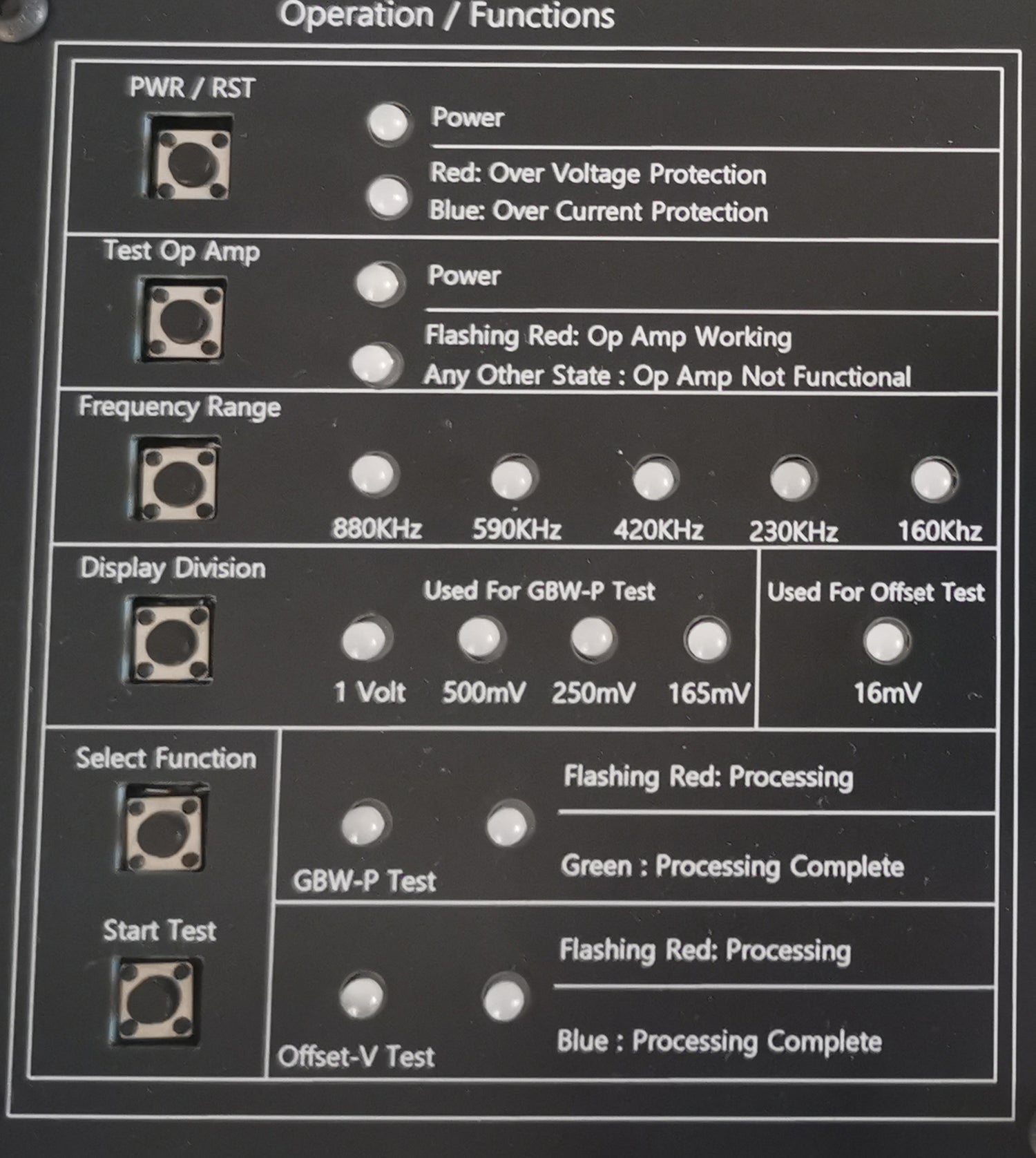

Function Buttons:
Easy and clear button / function system to make testing as easy as 1.2.3
No menu or sub menu to navigate from for functions. Simple and intuitive operation with help of silk screen information. each button represent single operation.

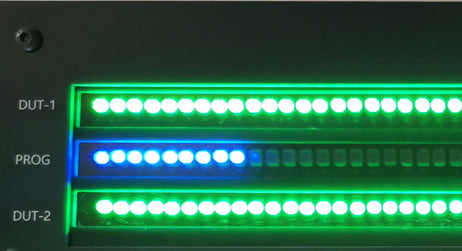

Display Bar Graph:
60 LED per function bar graph, Fast responsive display with no multiplexing effect. Filtered LED lights for strain / glare free operation.

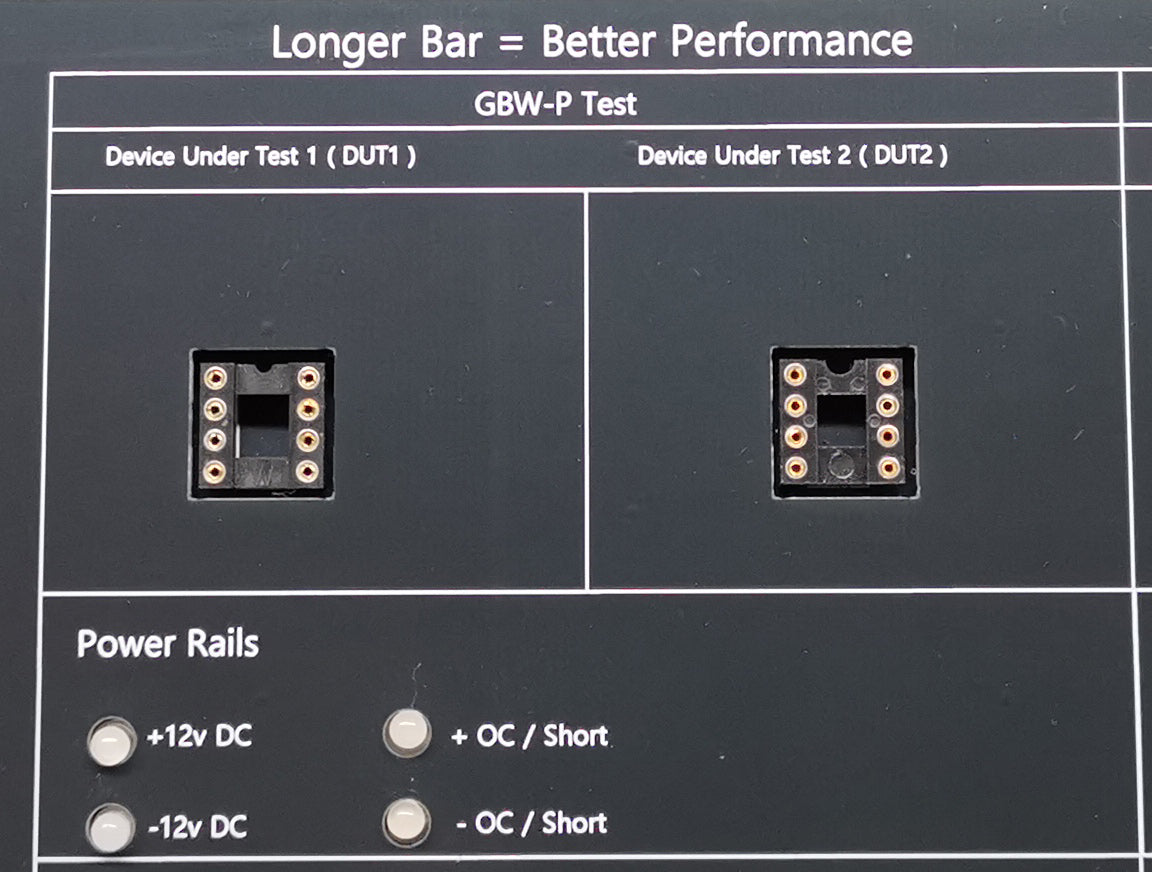

Gain-Bandwidth Product Test:
Easy to use test to determine the best performing operational amplifier in frequency response test. Fast and automated testing with few parameter selection, Test single op amp or 2 op amp at the same time.

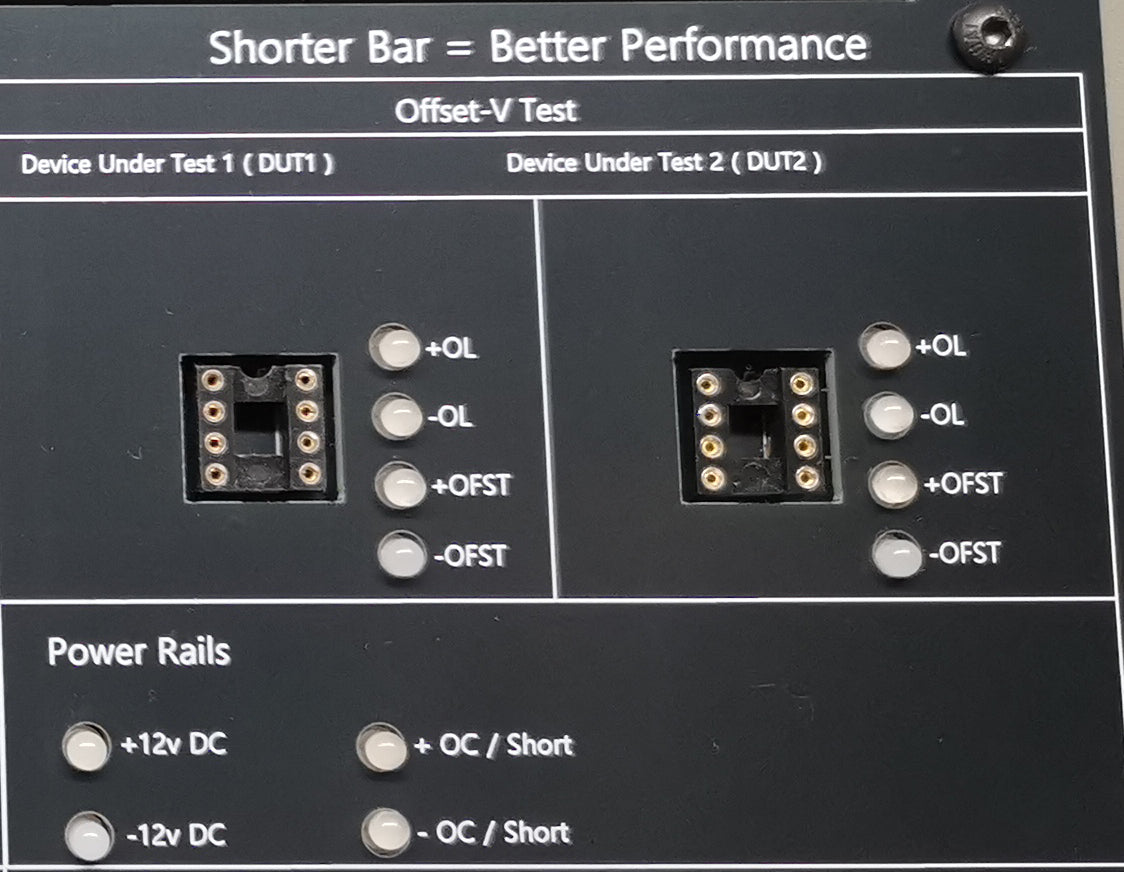

Offset Voltage Test:
Test operational amplifier offset voltage and get results in seconds. Test from ±1 volt to ±12 volts with automated voltage sweeping function. Get additional information and the polarity of the offset voltage

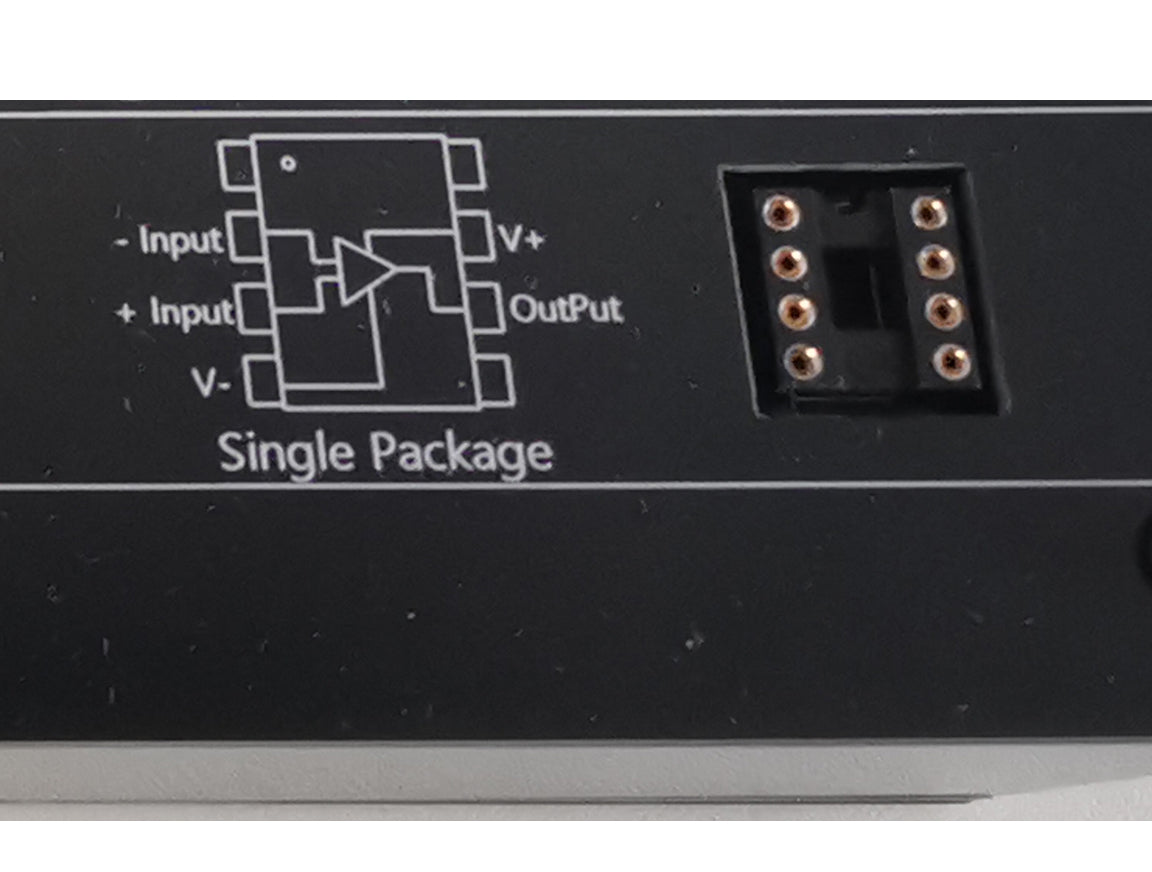

Op-Amp Functional Test:
Test single package operational amplifiers for functionality , Make sure op amps are functional before testing them in Gain-bandwidth and offset voltage. This eliminate false results du to op amp malfunctions.
